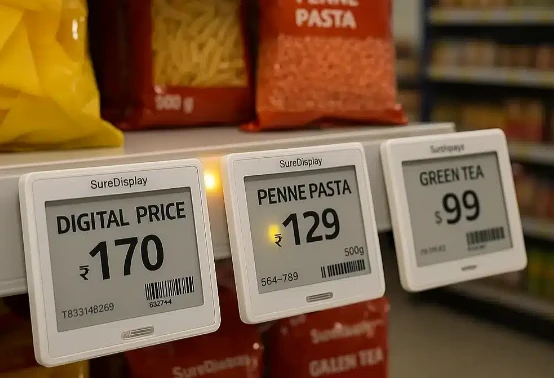

Nia so ag natatalosan na karaklan nipaakar ed ESL: say standalone screen et anggapoy kakanaan to. Literal ya andi-kakanaan. Kaukolan moynetworkpian nipasabi so data ed satan,softwarepian ibaga no antoy ipanengneng to, tantoopian nideploy iyan interon sistema ed saray totoon tindaan-saman so manitibukel na "solusyon." Say terminal a mismo, no anggapoy network, et sakey a laryo. Tan no ag say plataporma et mangiiter na data, antoy gunggona to?
Diad sakey a proyekto, sakey a kliyente so angipilit ya mangiyan na base stations ed loob na saray kisame lapud inisip dan mas malinis so itsura to. Nibaga ed sikara ya ag makaloob a maong so signal. Ag ira dinmengel. Taloy simba kayari na inggapo, kapaldua ed saray tatak ed frozen ya seksion so mangipapanengneng na daan iran presyo. Kaukolan ya ekalen so amin tan gawaen lamet. Mamitlo so gastos da.Importante so panagplano na RF.
Saray Label a mismo

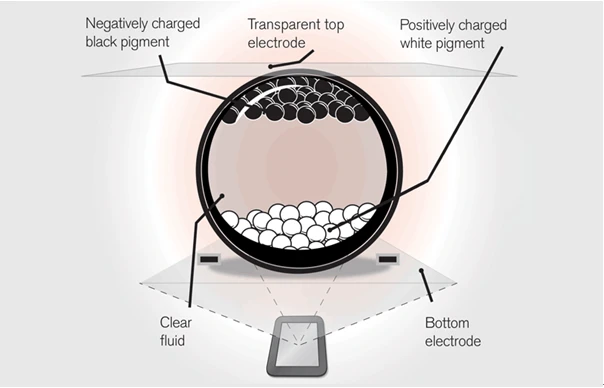

Akin et E-ink?
Saray ESL terminals et akabitin ed e-ink screens (E-ink), tan sayan pinili et aliwan aksidente. Say paraan ya impaliwawa na sakey ya hardware engineer: isipen pa ray angkekelag a kapsula ya napno na andeket tan amputin partikulo ya onleletaw ed larak. I-tap iratan na kuryente, onkukurang iray partikulo, ompaway so imahen. No naporma lay imahen, mansiansia labat diman. Puteren so kuryente, ag importante. Mansiansia so imahen. Say teknikal a termino etbistable displayodino singa ontan.
Konsumo na kuryentelegan na static display et ngalngali anggapo. Say data na test et mangipapanengneng na 2.13-inch ya andeket-tan-amputin tatak ya manpapaandar ed CR2450 button battery, ya manrerefresh na mamidua ed sanagew, tan manbayag6 anggad 8 taon. Anggano say refresh frequency et inmatagey na masulok ya 5 beses ed sanagew, manga 4 taon ni itan.
Insan wala met so katuaan ya ag-itan mangibubuga na liwawa-mankikimey itan diad pangipapatnag na liwawa ed kaliberliber, a singa gagawaen na papel. Antam no panon ya agla nabasa iray LCD screen no direktan sinag na agew? Say E-ink et mansiansian malinew. Insananggulo na pakanengnenganet aliwan -isyu. Saray kustomer et aliwan naynay ya akaalagey ed arap na label, agta ontan? Anggapoy pibabali to ed e-ink.
Nia so ag amta na dakel a totoo: say manunan teknolohiya parad e-ink screens ed interon mundo et ngalngalin monopolyo na sakey a kompanya-Say E Ink Corporation na Taiwan. Ngalngalin amin ya screen na saray manggagawa na ESL et nanlapud E Ink odino saray autorisadon kasosyo to. Sayan istruktural a bengatla so mangaapekta a maong ed gastos tan kompetisyon na interon industriya.

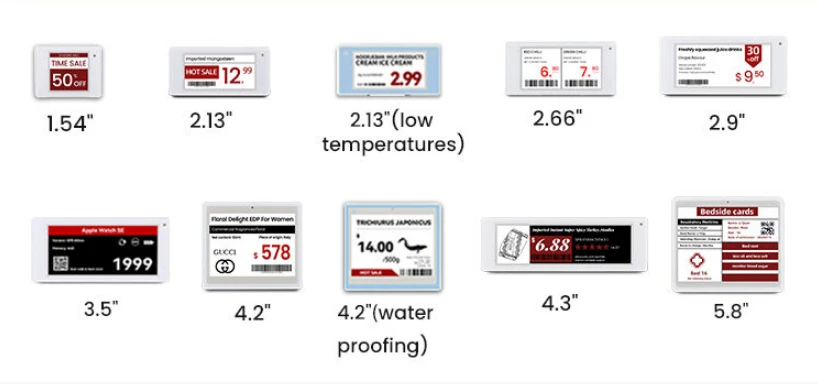

Saray Opsyon ed Kabaleg
Diad sukat-, walay medyo malaknab a sakop:
1.5 pulgada- regular ya gilig na estante parad inagew-agew iran produkto
2.9, 4.2 pulgada- saray bengatla ya mankaukolan na kaaruman ya impormasyon
6 pulgada- preskon produkto, pasen parad nanlapuan, grado, nayarin sakey a QR code
7.5 pulgada tan ontagey- sampot na caps tan category headers, no maminsan et anggad 13 pulgada
Saray 13.3-pulgada so uusaren bilang mini digital signs, balet diad saman a punto et onggapon onkupas so linya na saray karatula.

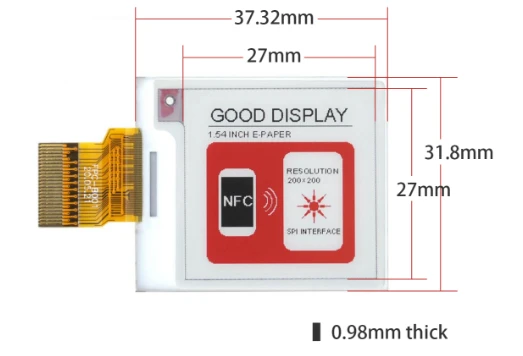

Panangisaliw na Kolor
Natan, say e-ink et walaan na limitasyon. Saray inmunan bersion et andeket tan amputi labat. Insan naisip na saray managgaway produkto no panon ya idagdag sokomatlon kolor-kaslakan et ambalanga odino duyaw-ya baleg a bengatla parad saray promotional callouts. Diad agano ni et walay itulak yafull-color ya ipapanengneng.
Nia so pansumpalan, tan makabkabaliksan itan:
| Klase | Panaon na Panrefresh | Gastos (2.9-pulgada) |
|---|---|---|
| Andeket-tan-amputi | 1-2 segundo | Baseline |
| Taloran-kolor | 10-15 segundo | ~2x |
| Full-color | 20+ segundo | 3-4x |
Say pambabantay na taloran-kolor ya update na screen et singa ansakisakit. Kanian maslak a managlako et manguusar na andeket-tan-amputi odino taloran-kolor. Say interon -kolor et ompatnag edsaray seksion na kosmetiko, saray displey na alak-pasen ya say visual presentation et makanakana ed premium.
Akin ya Importante iya-Say Peteg ya Problema
Sakey a regional chain supermarket ed Zhejiang so nanggawa na kalkulasyon: parad sakey ed saray tindaan da ya walay42,000 SKUs, sakey a pananguman ed presyo na promosyon ya mangilalanor na 15% na saray produkton nakaukolan8 ya empleyado so mantratrabaho na ngalngalin 6 oraspian nasumpal so amin ya pananguman ed label. Antis ya asumpal so pananguman ed label, baleg a kabiangan na saray kustomer so anengneng ya ag mipara so presyo ed saray presyo ed checkout. Say datos na internal audit da et mangipapanengneng ya say error rate ed saray presyo na papel et manga3.2%-manga 3 ed kada 100 ya produkto so aliwan susto so presyo to.
Say agsuston panagpresyo et mangitonton ed nantutumbokan a problema:
Nadiskobre na saray kustomer ed panag-checkout ya say presyo et duma ed presyo na istante-mauges ya eksperiensya
Diad dakel a pasen, saray panagsumlang et nayarin arapenmulta
Saray estratehiya ed panagpromote et ag nagawaan unong ed plano
Saray clearance items et ag makasabi ed sankaabigan ya sales window da
Say ESL et sakey ataytay. Diad tradisyonal a panaglako, say "presyo ed sistema" tan "say presyo ed estante" et walad duaran independentin bengatla. No manguman so presyo na sistema, say estante et ag-automatikon man-update-walay kaukolan ya manguman ed satan. Say "sakey a too" so makasbel ed pangipasabi na impormasyon-ya pansengegan na saray atraso, lingo, tan gastos. Say gagawaen na ESL et manguusar na teknolohiya pian naekal iyan bottleneck, ya abuloyan so data ya direktan onaagus ed saray shelf terminal ya anggapoy manual relay.
Lapud say kimey na too so makasbel, usaren so teknolohiya pian nasalatan itan. No manguman so data ed sistema, itulak to ray label diad network, saray label et automatikon man-refresh. Anggapoy panakar ed saray istante, anggapoy papel, anggapoy panag-imprinta.Say atraso et inmabeba manlapud oras ya anggad minuto, say error rate et inmepas manlapud pigaran porsiento ya anggad ngalngalin zero, say gastos ed trabaho et inmabeba a maong.
No say pangi-update ed presyo et aliwan sakey a bottleneck, wala ray balon posibilidad ya nalukasan.Dinamikon presyomagmaliw ya posible. Saray presyo ed online tan offline et nayarin man-sync ed real-time. Saray aktibidad ya pangipromote et nayarin onggapo ed eksakton komadua. Ontan so peteg a balor.

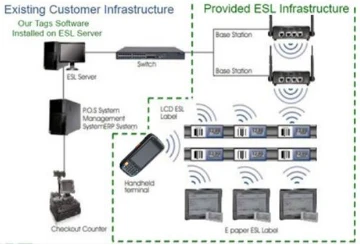

Say Piyesa na Komunikasyon
Saray label et lima, saray base station et nerbiyos, ya responsable ed pangipasabi na instruksion manlapud utek (platform) ya anggad kada lima.
Saray base stationkaslakan et singa patatdang a kahon, mipara so kabaleg da ed saray router ed abung, ya akapuesto ed kisame, tapew na estante, odino dingding. Kada base station et mansaklaw na nanduruman10 anggad 50 metro, depende ed protocol na komunikasyon, pakayari na transmission, tan say pakaapekto na kaliberliber. Say estandarten 3,000 metro kuadrado ya supermarket et kaslakan ya mangiiter na45 anggad 60 base stations, ya say balon refrigerated area et mankaukolan na mas masimpit ya pangideploy lapud saray isyu ed signal shielding.
Saray Protocol ed Komunikasyon
Ditan so pangibiig na saray managgaway produkto ed saray protocol na komunikasyon. Nia so inabang na nanduruman managlako ed apalabas iran taon:
2.4GHz Proprietary (SES-imagotag, Hanshow)
Saray angkabaleg a totoo et angala na 2.4GHz ya proprietary stuff. Impaliwawa na saray inhinyero ra ya labay dan sigpot ya kontrolen no panon ya onkiwas so protocol parad ESL. Makatunongan. Say makapuy a bengatla-no walad ecosystem da,say pangiyalis et sakey a bangungot. Saray label da et ag ira mitongtong ed saray base station na arum. Sakey a kliyente so malabay a man-mix and match. Ag nagawaan.
Sub-GHz (433MHz, 868MHz)
Mas labay na arum ya manlalako so abeban frequency. Impaliwawa na sakey a Pricer rep ya saray abeban frequency et mas maong ya makatalos ed saray babeng, ya ontutumbok ed no antoy naobserbaan ed sakey a proyekto na bodega ya dakel so semento. Balet saynanduruma iray totontonen ed kada bansa, tan saray antena et ondarakel. Sakey itan a panagsaliw.
Bluetooth Low Energy
Manpapasikat, lalo la ed saray balon manag-awit. Saray chips et mamura la natan, tan walay pan-apela na saray kustomer ya i-tap da ray telepono ra ed saray label parad impormasyon na produkto. Maong so pangipapanengneng to. Balet diad aktual ya makapal a panag-deploy, saylimitasyon na laknabigapo so pangipanengneng, tan walayinkasebel na kanal. Diad sakey a proyekto, saray eskedyul na update et kaukolan ya mansiansian arawi lapud dakel ya label so mansasagpot ya mansalita ed sakey a bekta.
Infrared
Uusaren iya nen Pricer ed pigaran sistema ra. Maong so epekto to no walay problema ed electromagnetic interference. Balet walay pankaukolan paradmalinew so linya na pakanengnengan, ya diad sakey a tuan tindaan ya walay totoon manaakar tan saray bengatla ya iyaalis, et aliwan naynay ya realistiko.
Say Power Paradox
Nia so manggagawa ed ESL communication ya talagan mairap ya gawaen: saray label et kaukolan ya ngalngali ag makainum na power-baterya ya manbayag na 5 anggad 10 taon-balet kaukolan da nin siansia ya naala iray update no ipawit. Say paraan pian naresolbe iya et diad panamegley namankakasakey iran siklo na ugip-liing. Saray label et walad coma ed maslak a panaon, ya ombangon labat na sakey a segundo legan na saray preset windows pian nanengneng no walay balo. Ipapanengneng na saray power profile ya sarayan bengatla et waladmicroampere-level ya ugip ed masulok ya 99% na panaon.
Akin ya say RF Planning et Manggagawa o Makaderal na Proyekto
Dia so nepeg ya pangusar na mas dakel a panaon, lapud pigaran proyekto na ESL so walaan na itatalona odino inkagba ya mandedepende ed kalidad na panagplano na komunikasyon.
Metal ya estantemanpapatnag tan manbabawal ed saray signal, kanian saray posisyon na base station et nepeg ya maalwar ya idesinyo
Saray refrigerated casessaray Faraday cages-metal cabinets, compressor interference, glass doors ya amin et mangaapekta ed saray signal. Kaslakan et kaukolan so nanduruman relay devices ed loob
Saray sankatageyan a panaon na update tanduaran sakopparad saray manunan lugar pian naprebentaan so sakey a punto na inkagba

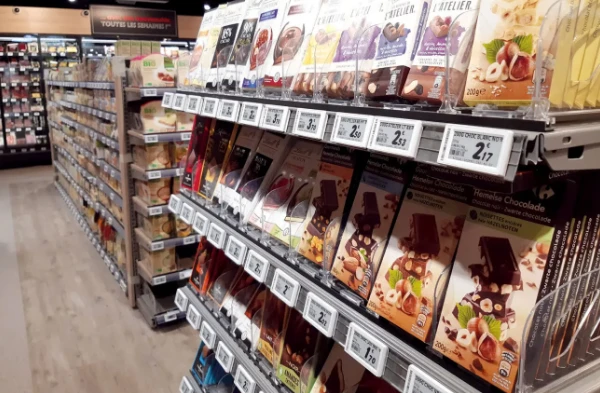

Kanian Anto so ESL, Antokaman-Sakey a Kabaliksan
Solusyon ed Electronic Shelf Label, ya aderal:
Elektroniko- so mangibiig ed satan manlapud papel
Label na Istante- sakey itan a tag na estante, aliwan sakey ya screen na patalastas
Solusyon- saya so kompleton solusyon, aliwan saksakey a produkto
Akin et kaukolan ya tawagen ya "solusyon"? Say standalone ya electronic label et talagan anggapoy kabaliksan-agto nayarian ya naala iray presyo ed inkasikato, agto amta no antoy ipanengneng to ed inkasikato, agto nayarian ya i-refresh ed inkasikato. Kaukolan ya manmatalek itan ed sakey akomunikasyonpian makaawat na instruksion, manmatalek edsoftware platformpian makala na datos. Saya so sankaunaan ya gawaen mo ed ESL.
Say Software Side
Diad tua et kaukolan ya walay platform ya mangala na data na presyo manlapud ERP o POS, amtaen to no antoy onloob ed dinan ya label, tan i-push to itan. Wala ray template editor parad panagdesinyo na saray layout na label, tan pigaran lohika no kapigan ya i-push iray update.
Saykabiangan na pankakasakeydiad saray wala lan sistema-ditan so pan-stuck na saray proyekto ed loob na pigaran bulan. Legacy ERP, nikadkaduman data formats, IT departments ya ag mangiiter na access.
Say pangiloob ed sayan bengatla ed sakey a tindaan
Say sistema na ESL manlapud anggapo anggad nasumpal et mankaukolan na kompleton proseso na pangipaakseb na engineering. Say inkakomplikado na sayan proseso et mabetbet ya onlampas ed iilaloan na saray primeron manguusar. Dakel a proyekto so onkukurang dia, kanian sayan seksion so makanepegan na peteg ya imano.

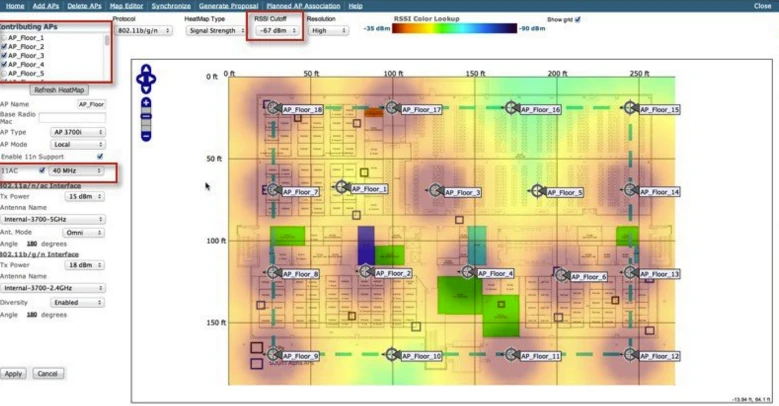

Say RF Survey-No iner so ipatey na saray proyekto
Balet say bengatlan mamapatey ed maslak a proyekto?RF survey. Odino, say kakulangan na manepeg.
Say ESL et mandedependi ed wireless communication, tan saray totoon panaglakoan et napno na saray babeng tan makaamper:
Metal ya estantemangipapatnag na signal
Saray aparador ya walad refrigeratornatural iran Faraday cages
Semento iran padirblokeen so pakaloob
Arum ya wireless ya kagawaanpansengegan na pakaabalaan
Legan na dakel so trapiko,say laman na too et mansesepsep na saray signal
Say suston RF survey et talagan dakel a kimey. Onggapo iya ed pangi-mapa na pisikal ya kaliberliber-no iner so kawalaan na saray dingding, no iner so kawalaan na saray metal ya istante, no antoy mamapawala na pakadisturbo. Insan ipanengneng na saray signal propagation tests no panon ya talagan onkikiwas iray frequency ed satan ya espisipikon espasyo. Suboken so kondisyon na ketegan, saray nikadkaduman suyok, saray lugar ya asingger ed pantalan na panagkargaan. Say output et aliwan "iyan iray base stations dia"-nepeg ya eksakto so posisyon, singa anggad sentimetro, kaiba iray coverage map ya mangipapanengneng no iner so mabiskeg na signal, no iner so makapuy, tan no antoy gawaen ed saray probleman pasen. Makapabaing itan, balet makaliktar itan ed makapataktakot ya senaryo ya asalambit la.
Dakel ya manlalako so ag-onla ed saya odino gagawaen dan kapaldua pian makatipid. Insan da pankelawan no akin ya 15% na saray label so mansiansian offline.
Panagsuri ed Lugar
Say unonan gawaen et say pakatalos ed situasyon na tindaan:
Pisikal ya kaliberliber- lugar na tindaan, katagey na kisame, inkaalasir na datal, klase na estante
Saray kakaukolanen ed produkto- say dagup na SKU so mandetermina ed karakel na label, say panagbunog na kategorya so mandetermina ed saray ratio na kabaleg
IT ya kaliberliber- anto ray bersion na ERP/POS ya manpapaandar, antoy itsura na imprastraktura na network
Pangipuesto na Base Station
Say pangikabit ed kisameso sankabaloan ya paraan-walay malinew a linya na pakanengnengan ed saray istante tan ag-itan makaloob. Balet no abeba so kisame odino anggapoy maabig ya pangikabit, nayarin ipuesto iratan ed tapew na saray istante. Say pangipeket ed dingding et mankimey bilang suplemento ed pigaran lugar.
Say kuryente et kaslakan ya ipapasabi panamegley naPoE, ya kombeniente ta sakey labat ya kable so kaukolan ya ondalan. Kabaliksan na satan ya say PoE et mangiiter na pakayari ed amin a bengatla, tan depende ed setup, nayarin sakey a lokal a server odino gateway.
Agmo lilingwananUPS-no naandi so kuryente tan ag-onkapuy so sistema, nayarin naderal so database.
Label Deployment
Awaten so kargamento, nengnengen iratan, gawaen iray activation test pian naseguro ya talagan mankikimey iratan
I-scan so kada label tan i-bind ed mipetekan a produkto ed sistema
Say pisikal ya pangipuesto et mandedepende ed no antoy klase na shelving ya akapuesto
Wala ray label ya akasabit ed gilig na estante, arum et akasabit ed rail slot. Wala raysaray magnetikoparad saray metal ya tapew,saray manpepeketparad makinis iran tapew, tanmelag ya akaalageyparad saray display case. Anggapoy komplikado, basta manguusar na panaon no nilibon gagawaen iratan.
Pansubok tan Panangipatnag
Functional testing- onkikiwas kasi so amin a bengatla unong ed iilaloan?
Pansubok ed sakop- kada sakey a tatak
Stress testing- ed silong na peak load ed loob na ag-onkulang ed 72 oras
Say pankasakey na sistema so asalambit la-dia so pakapateyan na saray proyekto. Say joint debugging phase labat et nayarin mangala na pigaran simba no saray legacy systems et magulo la.
